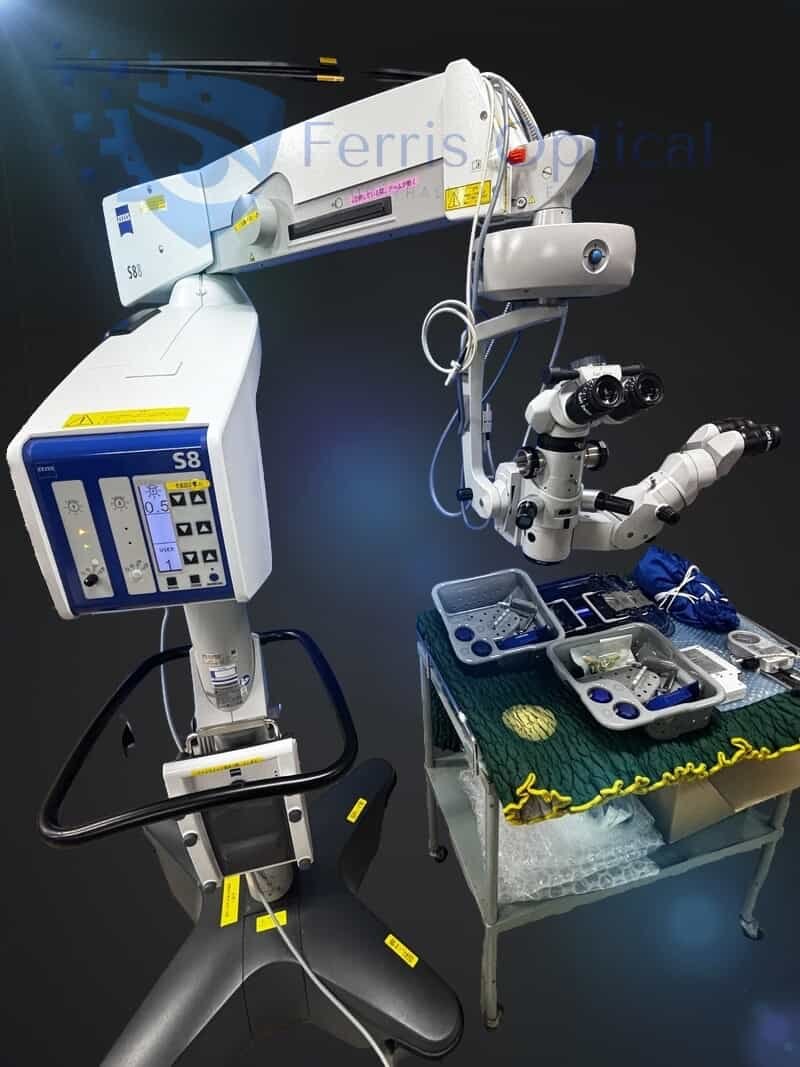

Der Zeiss Lumera T S88 is an outstanding microscope designed for a full suite of ophthalmic procedures, excellent for the University Medical Center and specialists in vitreo-retinal procedures. If you are looking to achieve the best in red reflex technology, look no further than the Lumera T S88 ophthalmic surgical microscope.
With the introduction of Lumera Stereo Coaxial Illumination, you see more contrast with this brilliant, stable red reflex – even in decentered or strongly pigmented eyes.

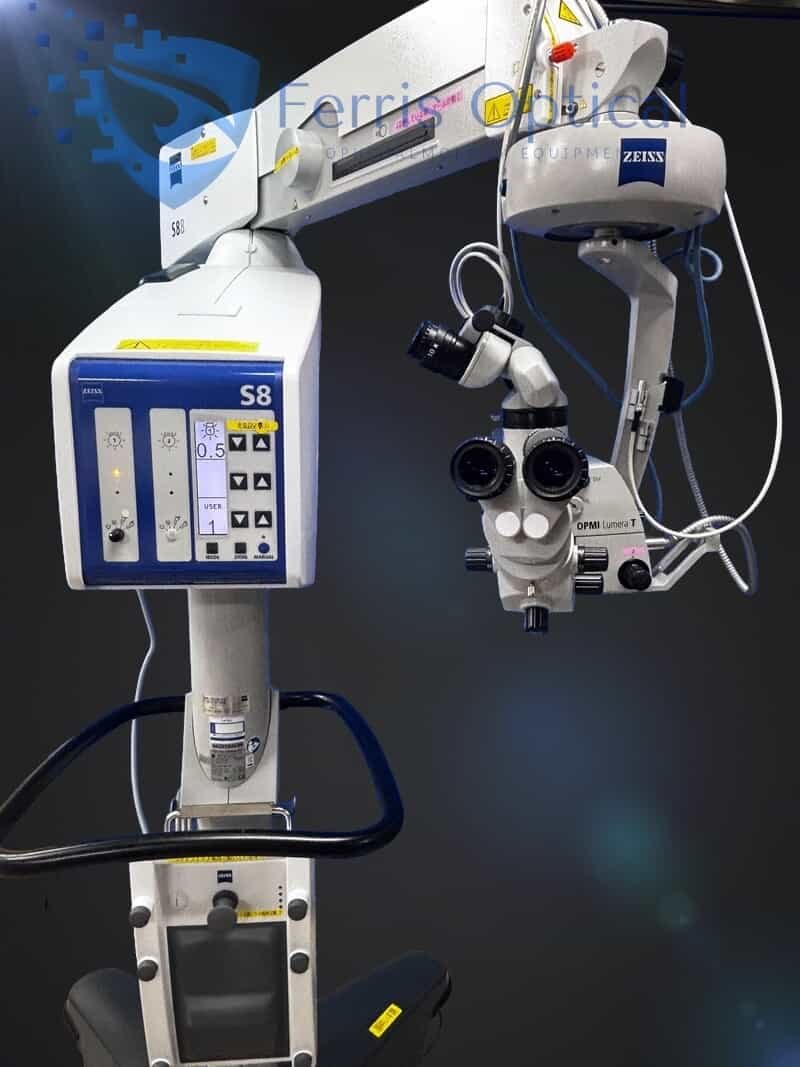

The Lumera T S88 floor stand provides superior surgeon control through ergonomic handgrips that release the magnetic clutch brakes, allowing the microscope to be moved across the surgical field with minimal effort. Program the Lumera T S88 for up to 9 users, with preset motorized speeds, illumination intensity, and foot pedal controls.

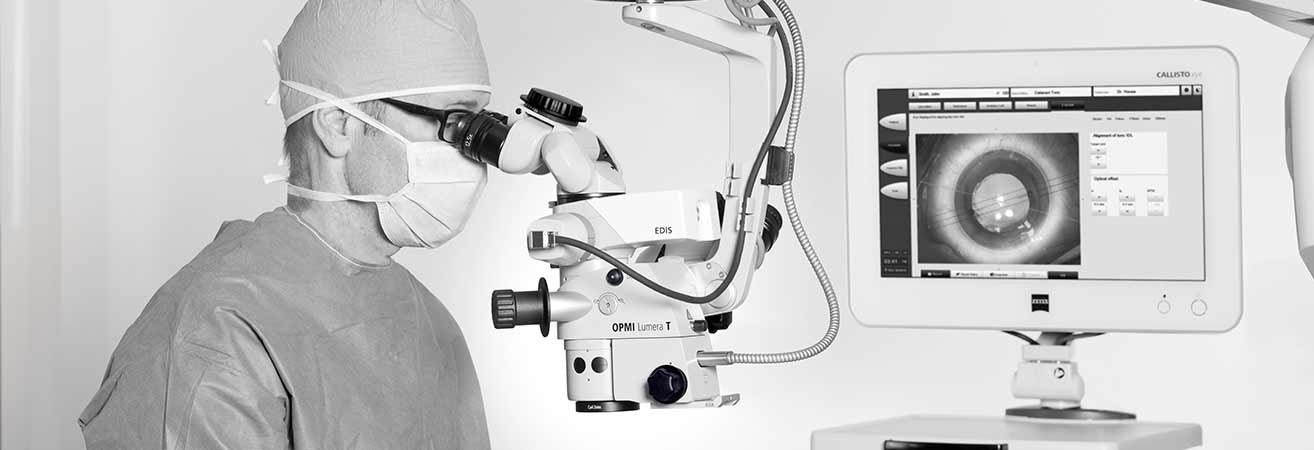

The OPMI Lumera T from ZEISS delivers excellence in optics, and Stereo Coaxial Illumination (SCI) reveals fine details for better decision-making. With the External Data Injection System (EDIS), you can see overlays on the live image in the eyepiece.
For flexibility in the OR, the ZEISS OPMI Lumera T can be equipped with a completely integrated assistant’s microscope. Effortless positioning with magnetic brakes provides handling comfort – quality made by ZEISS.
Key Features and Benefits
- Stereo Coaxial Illumination (SCI™): Provides a brilliant, stable red reflex that reveals the finest details of the eye, such as tissue residues in the capsular bag, with unparalleled contrast.
- Superlux® Eye Xenon Illumination: Delivers high-intensity, daylight-quality light to see the anatomic structure of the eye in its natural colors; includes a HaMode™ filter for surgeons who prefer a halogen-like light spectrum.
- DeepView Depth-of-Field Management: Allows surgeons to switch between maximum depth of field and optimal light transmission at the push of a button, providing deeper insights during procedures.
- Effortless Magnetic Positioning: Magnetic brakes for XY and Z directions enable the microscope to glide smoothly into a new position when released and lock firmly in place when engaged.
- Integrated Assistant’s Microscope: Features a fully integrated stereo assistant scope that allows the second surgeon to independently select focus and magnification without limiting the main surgeon’s light.
- S88 Floor Stand Versatility: Offers high load capacity and the ability to save settings for up to nine distinct users (including starting magnification, focus speed, and foot control defaults).
- Invertertube™ Ready: Can be equipped with an integrated inverter tube for ergonomic seating, making switching between cataract and retinal procedures seamless without conversion.
Clinical Applications
The Zeiss OPMI Lumera T S88 is the ultimate tool for a full suite of ophthalmic procedures:
- Cataract Surgery: SCI™ technology ensures the recognition of the slightest tissue residue, providing a safe foundation for perfect results.
- Retinal Surgery: High optical quality and light intensity enable full-detail visualization of the retina; the system is ideal for bimanual retinal surgery when paired with the VISULUX™ slit illuminator.
- Teaching Institutions: The independent assistant scope enables residents to actively assist with full 3D-quality views, making it an excellent choice for university hospitals.
Why Choose the Zeiss OPMI Lumera T S88?
The OPMI Lumera T S88 is not just a microscope; it is a comprehensive surgical partner. Its ability to instantly provide a stable red reflex upon positioning eliminates the need for constant readjustment.
With features like the HaMode filter to customize light temperature and support for high-definition video recording, it adapts to the individual preferences of every surgeon in a busy practice.
It transforms the operating room into a highly efficient environment where precision meets comfort.
Spezifikationen
- Magnification System: Motorized zoom system with 1:6 zoom ratio (magnification factors 0.4x to 2.4x).
- Focusing: Motorized focus with a 50 mm range.
- Objective Lens: f=200 mm (f=175 mm optional).
- Eyepieces: 10x (12.5x optional) widefield eyepieces.
- Illumination: SCI™ red reflex illumination, Superlux Eye Xenon light source with manual bulb change, and integrated UV/Blue blocking filters.
- X-Y Coupling: 40 mm x 40 mm adjustment range with centering button.
- Gewicht: 13.7 kg (microscope head); System total approx. 220 kg (on S88 stand).
- Suspension System: S88 Floor Stand (also compatible with S8/S81 Ceiling Mounts).
Include:
- Surgical Microscope with S88 floor stand

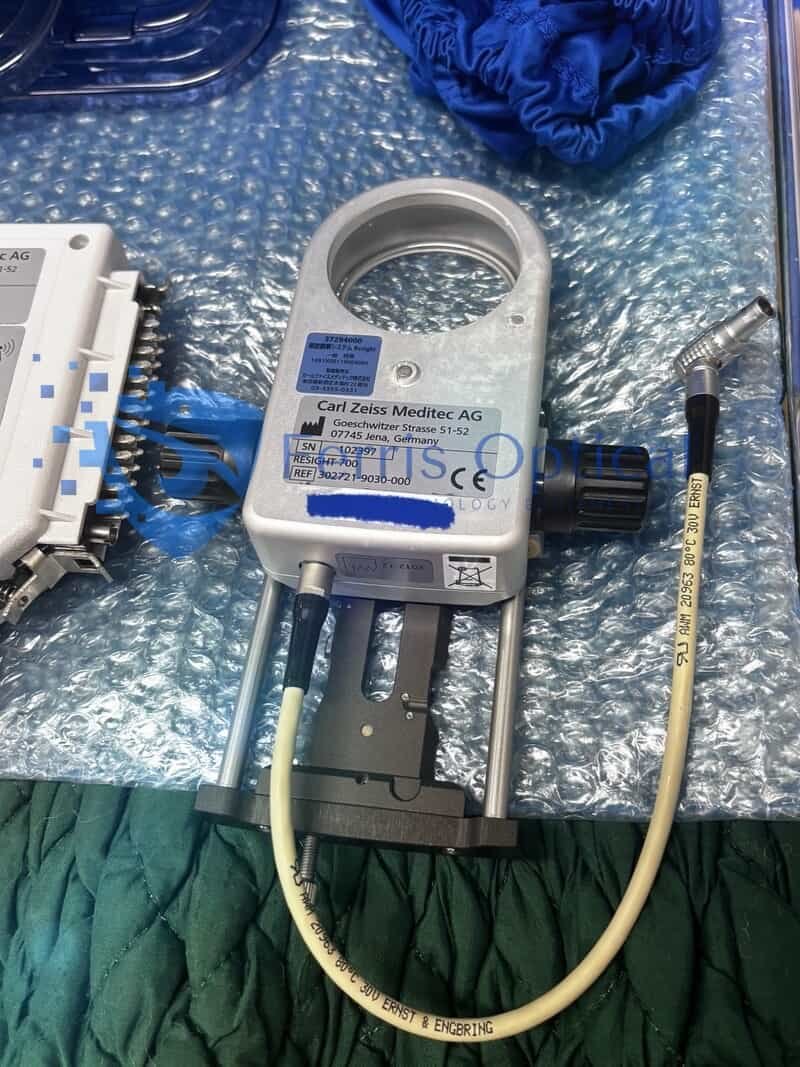

- 1 Pcs of RESIGHT 700 (Uncompromised intraoperative retina visualization)

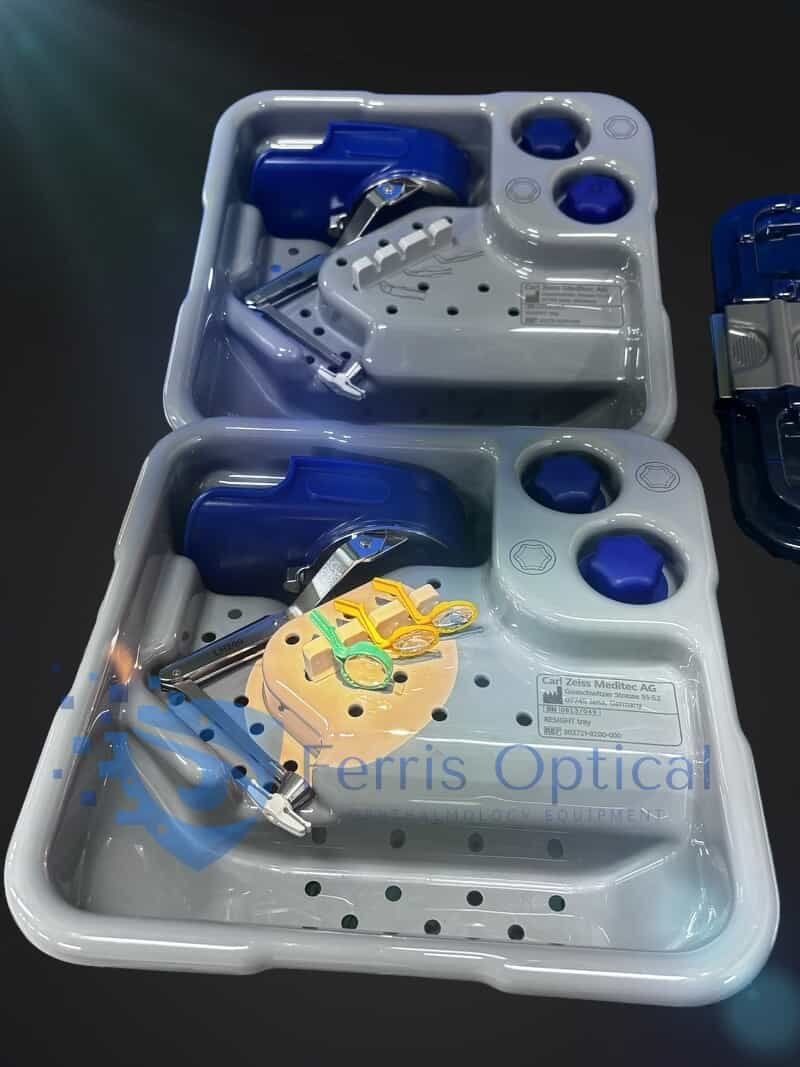

- 2x Treys and (2x Yellow lens, 1x Green lens)

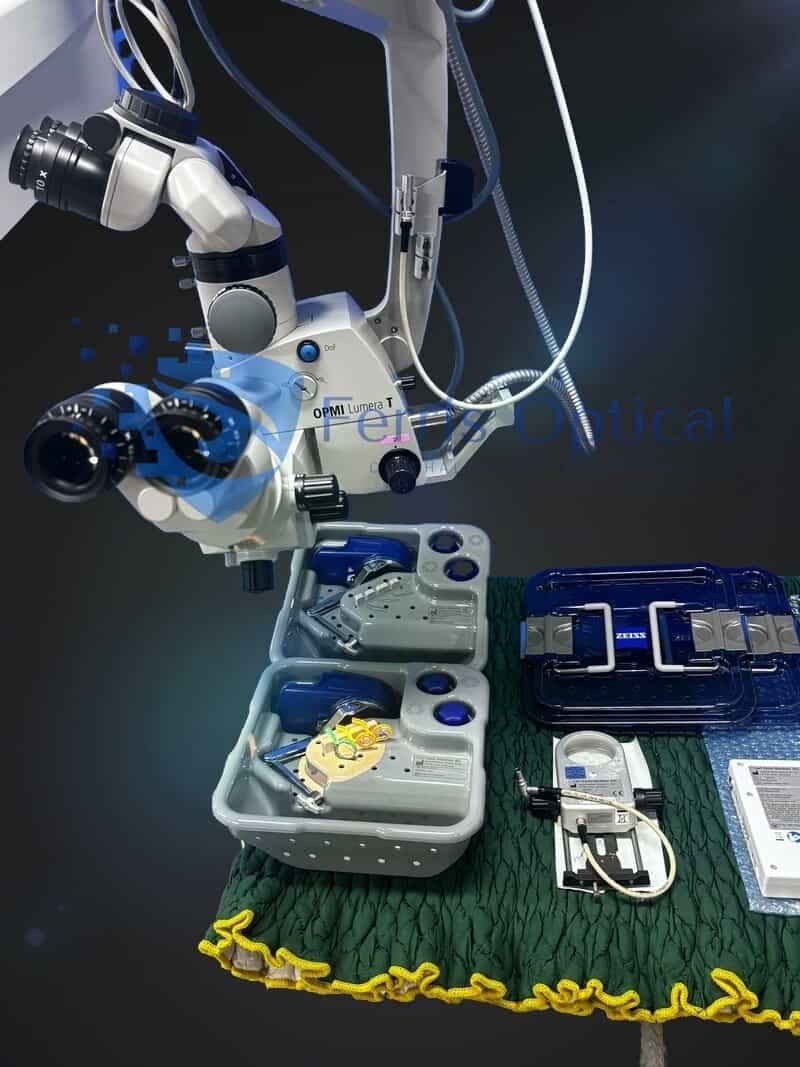

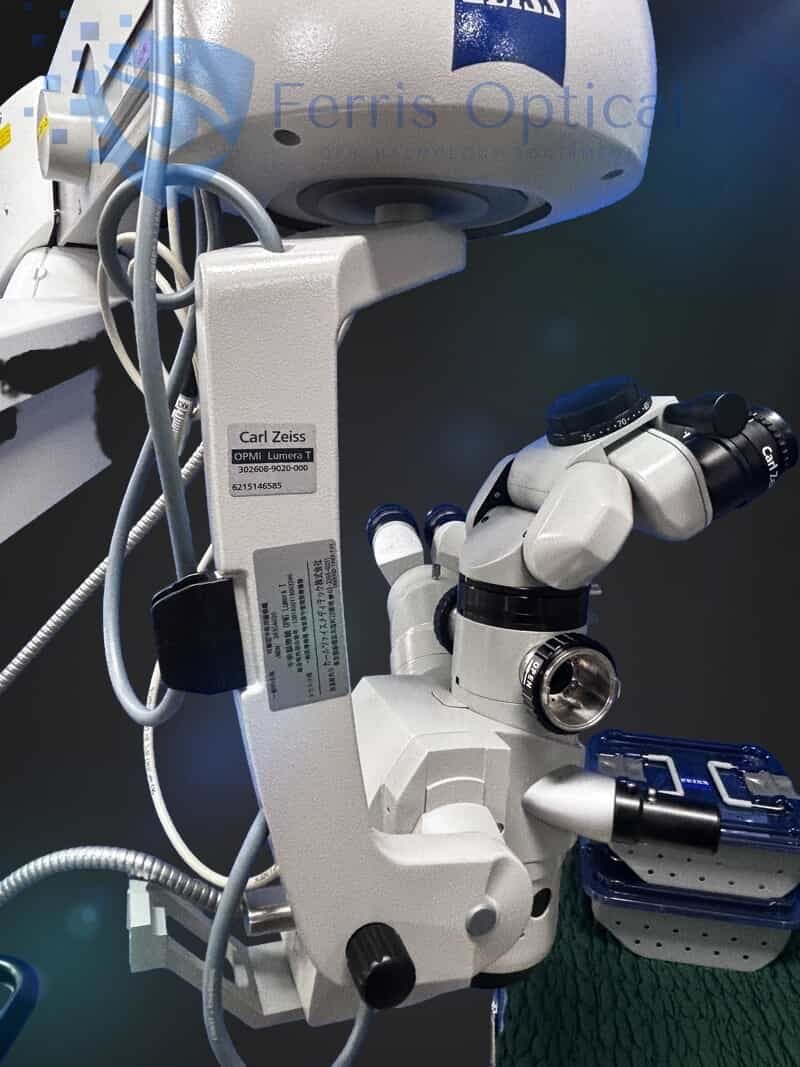

- Zeiss Lumera T w/XY & Assistant Scope
- Zeiss Obj Lens F200-65mm PMZ061B
- Zeiss S-88 Floorstand(Fixed PMZ009D
- Zeiss 0-180 Bino. (style2) PMZ044
- Zeiss Visu 200/210 Assistant Bino
- PMZ013VAB
- x4 Zeiss 10X22B Magnetic 305542
- Zeiss Superlux 180 Eye Duo “F” WCC475

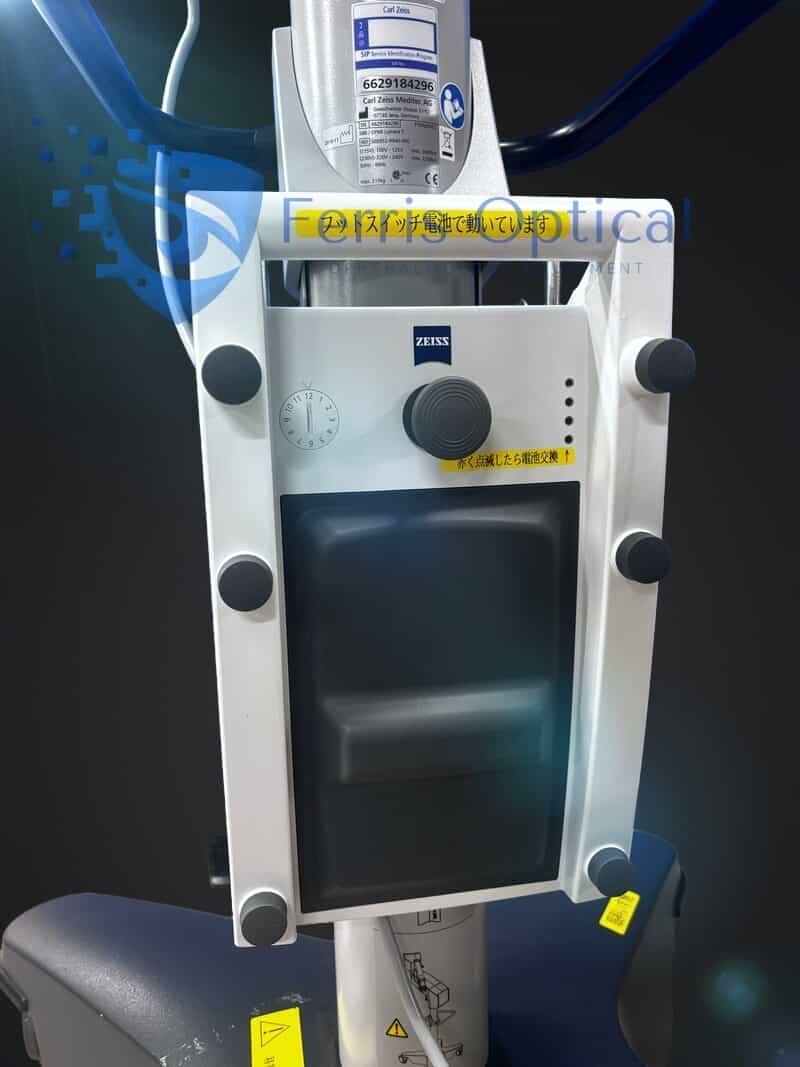

- 304979-9010/90 Zeiss Waterproof 14pt F/S w/
- Control
- 304979-9035 (Zeiss P/N)
- x10 Knob Covers Small 305810
- x2 Zeiss Type 2 Bino PD Knob Big 303791-0153
- x4 Zeiss VISU Asepsis Sterilizable Handle Covers
- Microscope Cover
