Carl Zeiss OPMI LUMERA S7 Surgical Microscope

Der Zeiss OPMI LUMERA S7 features more clarity, contrast, and stability than previous models. The LUMERA S7 allows you to see intricacies of the ocular anatomy that you have never seen before with the help of Stereo Coaxial Illumination (SCI). The contours appear razor-sharp.

This microscope allows you to easily recognize different structures and fluidics, even with dense cataracts. The LUMERA S7 can be equipped with a stereo co-observation tube, allowing a second person to see the surgical field at the same magnification.

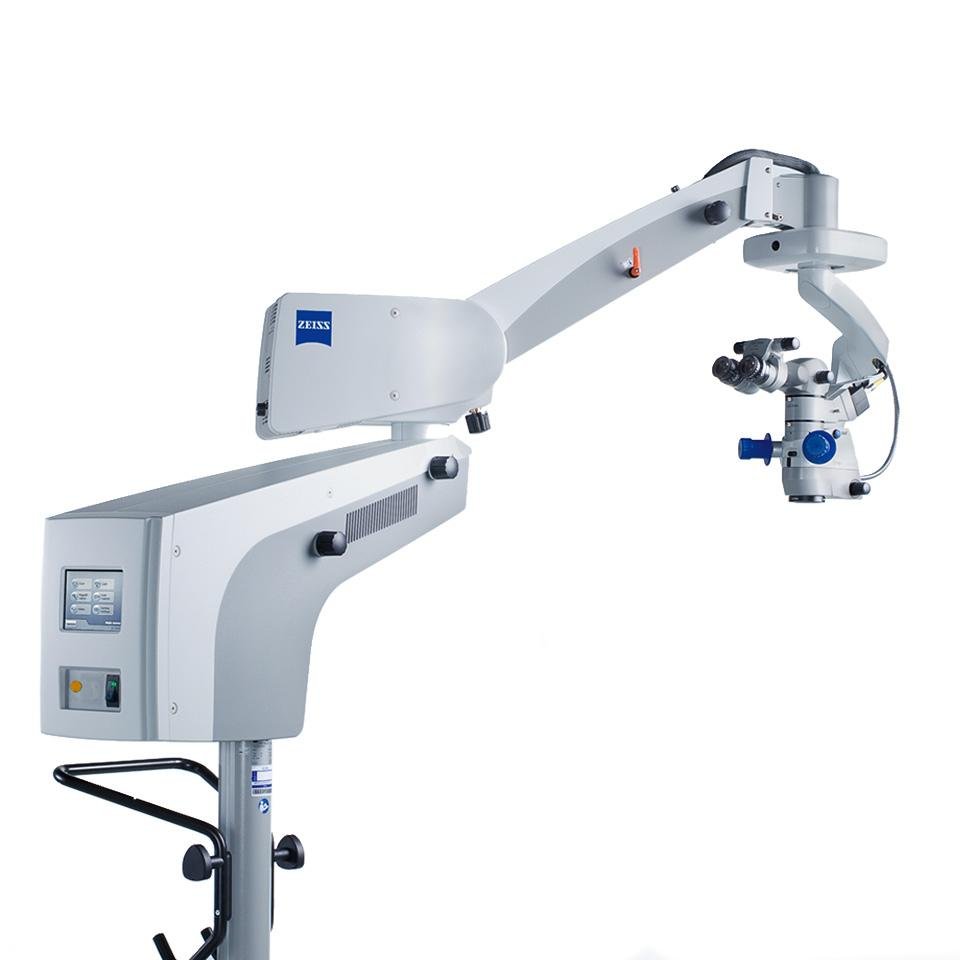

The OPMI LUMERA S7 Surgical Microscope can be suspended using a ceiling mount or mobile with a floor stand. The microscope utilizes the Stereo Coaxial Illumination (SCI) system for red reflex and image quality.

Zeiss OPMI LUMERA S7 Hauptmerkmale:

• The targeted surgical area shines brightly and vividly.
• DeepView allows you to switch between maximum transmission and the maximum depth of field, whichever is required.

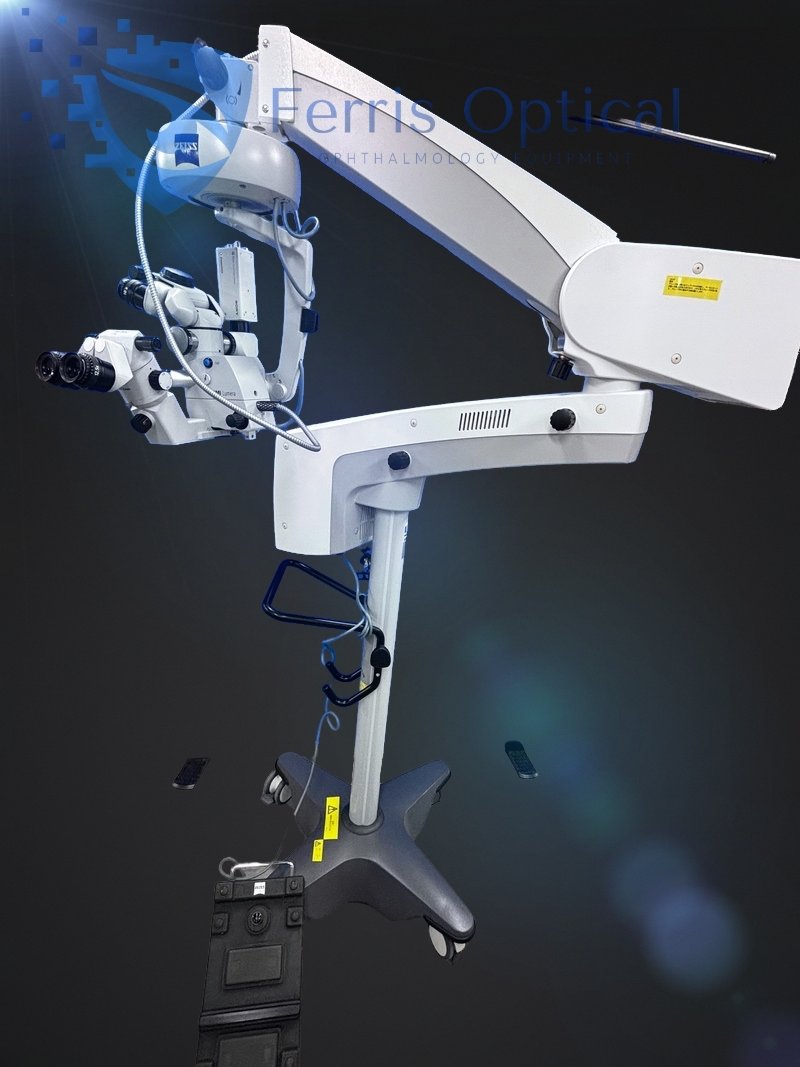

• S7 manual floor stand, compact and maneuverable.
• Motorized zoom.
• Zoom ratio: 1:6.
• Apochromatic optics.
• Focusing Range: 50 mm.
• SCI: Red reflex illumination.
• Optimum visualization and contrast with the Stereo Coaxial Illumination (SCI) system
• Instant red reflex
• Integrated DeepView depth-of-field management system to choose between maximum depth of field and optimum light transmission at the push of a button
• Versatility in positioning, with choice between ceiling mount suspension or floor stand

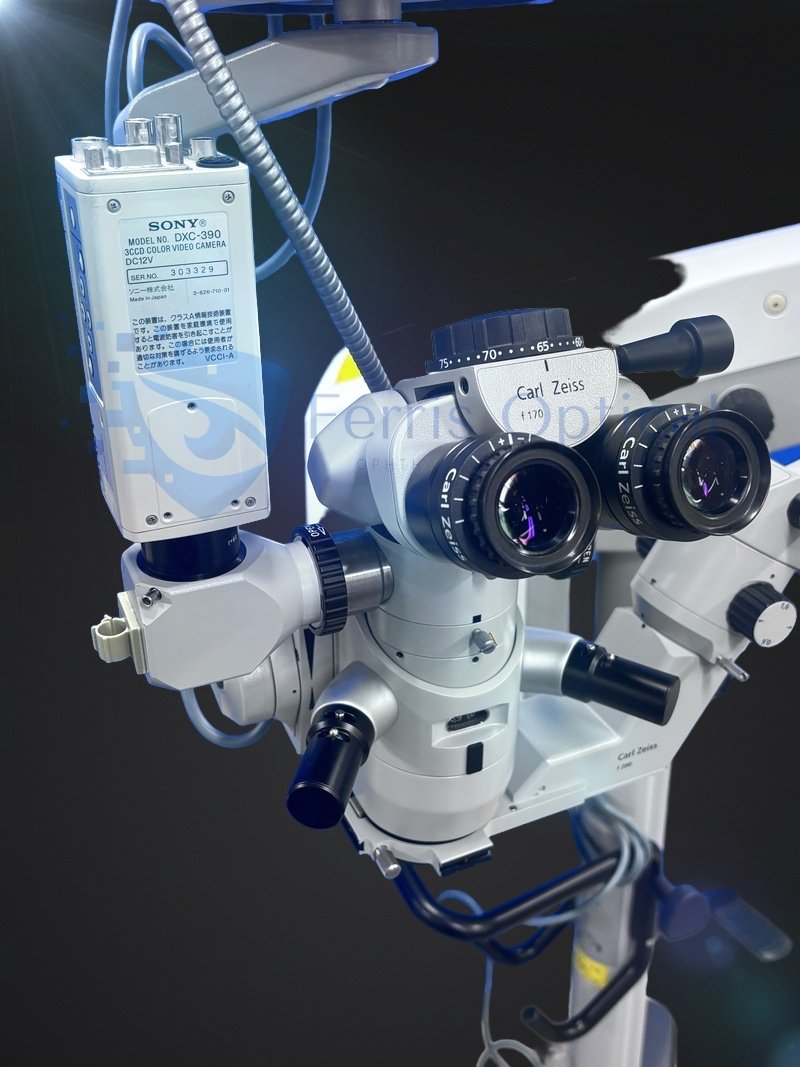

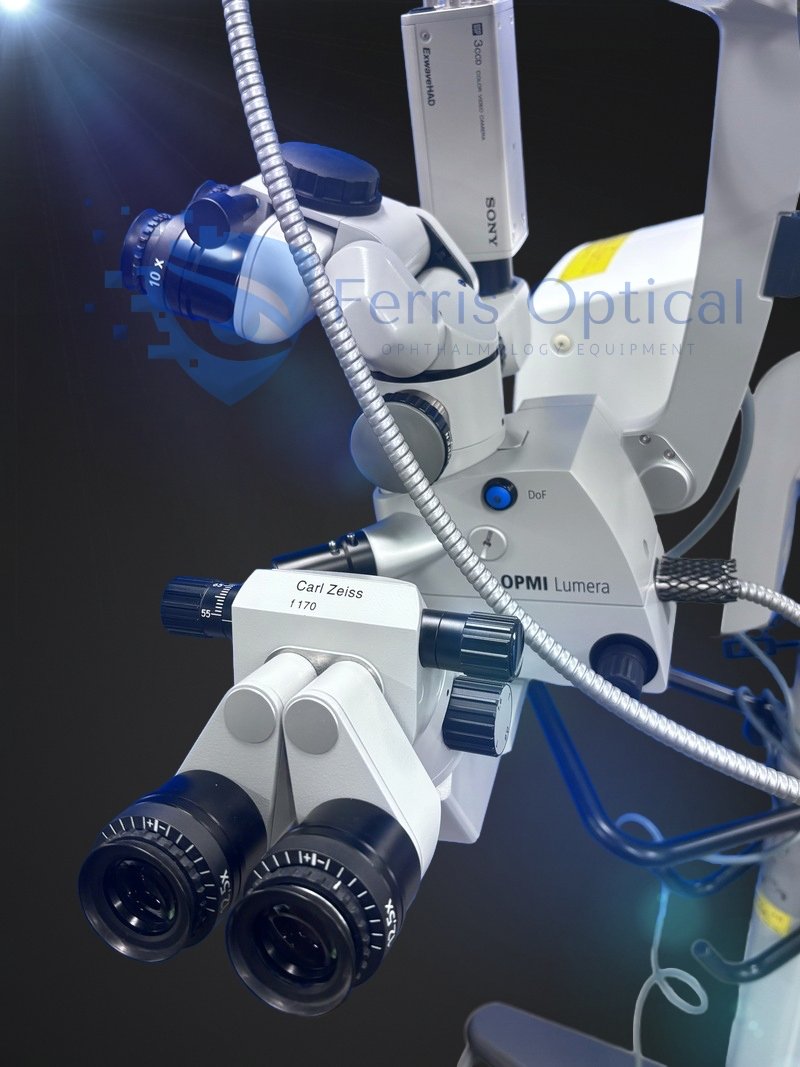

• Binocular Tube: Apochromatic optics, 0-180° tiltable tube
• Eyepiece: 10x
• Magnification Changes: Motorized zoom system, 1:6 zoom ratio
• Total Magnification: 0.4 – 2.4 x
• 12V/100 W halogen lamp light source
• UV barrier and Blue blocking filters

The Zeiss OPMI LUMERA S7 features more clarity, contrast, and stability than previous models. The LUMERA S7 allows you to see intricacies of the ocular anatomy that you have never seen before with the help of Stereo Coaxial Illumination (SCI). The contours appear razor-sharp.

This microscope allows you to easily recognize different structures and fluidics, even with dense cataracts. The LUMERA S7 has the ability to equip a stereo co-observation tube, allowing a second person to see the surgical field at the same magnification level.

Specifications:

– Spring console: The length of at least 750 mm, the angle of rotation of at least 296 °
– Bracket: The length of at least 450 mm,  Rotation angle not less than 360 °
– Stand height: not less than 1730 mm
– The base (dimensions): no more than 640 x 640 mm
– Maximum weight load spring console: up to 14 kg (all microscope equipment, including accessories)
– Asepsis: Rubber repeatedly sterilized caps;
– Ergonomics: Internal cables and optical fibers, totally enclosed surface structure
– Zap. parts: Spare halogen lamps – 2 pieces.
– Stand height: 1730 mm
– The base of the tripod: 640h640 mm
– Total weight: 190 kg
