The Tomey FT-1000 is purpose-built for modern optometry clinics, delivering quick, accurate, and comfortable non-contact tonometry for every patient. Its gentle, silent air pulse ensures a stress-free experience, while the intuitive touchscreen alignment and fully automatic measurement system streamline workflow for optometrists.
The FT-1000 automatically adjusts IOP readings based on central corneal thickness, providing enhanced accuracy for glaucoma screening. With features like auto alignment, auto shot, high-speed measurement, and a built-in printer, the FT-1000 boosts efficiency and reliability in busy optometric practices.
The FT-1000 is designed with both patients and optometrists in mind. Voice prompts and visual cues notify patients of measurement timing, reducing anxiety and ensuring cooperation. Patient safety is prioritized through a touch sensor that halts movement upon contact. For optometrists, the device’s ergonomic design, constant air pressure, and ease of use support smooth, efficient exams and accurate results.
Tomey FT-1000 Features
- Soft, silent air impulse
- Touch-screen alignment system
- Adjustment of IOP data according to central corneal thickness
- Automatic alignment and image capture
- High-speed measurement with multi-shot option
- 5.7″ color touch screen
- Automatic movement towards patient’s left or right eye
Measuring Intraocular Pressure
| MEASUREMENT RANGE | 0-60mm Hg (0-30mm Hg/25-60mm Hg) |
| MEASUREMENT | 1mm Hg (1 hPA) increments within the measurement range |
Energy and Other Consumption
| LIGHT SOURCE | Light emitting diode |
| WAVELENGTH | 880nm |
| OUTPUT | Alignment <50μW (Limit 1:210μW) Measurement < 100μW |
| LIGHT SOURCE | Light emitting diode (3-colour chip) |
| WAVELENGTH | RED 630nm / GREEN 520nm / BLUE 40nm |
| OUTPUT | RED <0.1μW(Limit1:3.7μW) GREEN <0.1μW(Limit1:3.7μW)BLUE 0.1μW(Limit1:3.7μW) |
Light for Anterior Eye Segment
| LIGHT SOURCE | Light emitting diode |
| WAVELENGTH | 780nm |
| OUTPUT | Alignment <100μW (Limit 1:450μW) 1 AEL Class 1 Conforming to IEC< 100μW |
| BUILT-IN PRINTER | Thermosensitive line printer |
| STROKE OF MOVING SECTION | 88mm (X-axis) / 40mm (Y-axis) / 45mm (Z-axis) |
| STROKE OF CHINREST | 70mm |
| DATA OUTPUT TYPE | RS-232C |
| DISPLAY | 5.7mm colour LCD |
Dimensions & Electrical Requirements
| DIMENSION WDH | 306 x 493 x 463mm |
| WEIGHT | Approx. 18kg |
| POWER SUPPLY | AC 100V to 240V |
| POWER CONSUMPTION | Less than 85VA |
Optometrists can easily calibrate the FT-1000 to adjust IOP measurements for each patient’s corneal thickness, ensuring precise, personalized glaucoma screening. The IOP correction formula is customizable, allowing clinics to align with their preferred protocols and standards to achieve the most relevant results.

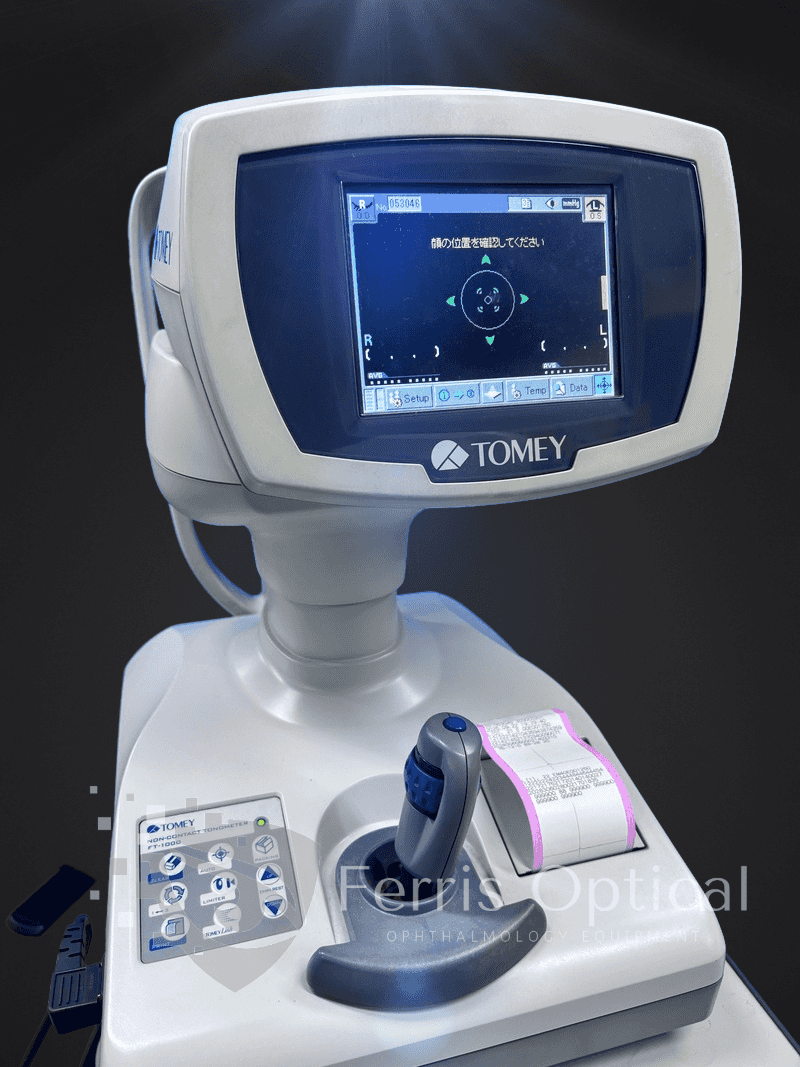

Operation is effortless—optometrists need only position the device roughly towards the patient’s eye, and the FT-1000 automatically completes alignment and measurement. Switching between eyes is as simple as tapping a button on the touchscreen, making the exam process faster and more convenient for both practitioner and patient.
The FT-1000’s quiet, gentle air pulse enhances patient comfort and minimizes anxiety, resulting in a more pleasant exam experience and highly accurate IOP measurements every time.
Technical Details
- Dimensions: 306 x 493 x 463 mm
- Weight: 18 kg
- Power supply: AC100V to 240V
- Frequency: 50/60 Hz
- Power consumption: less than 85 VA
