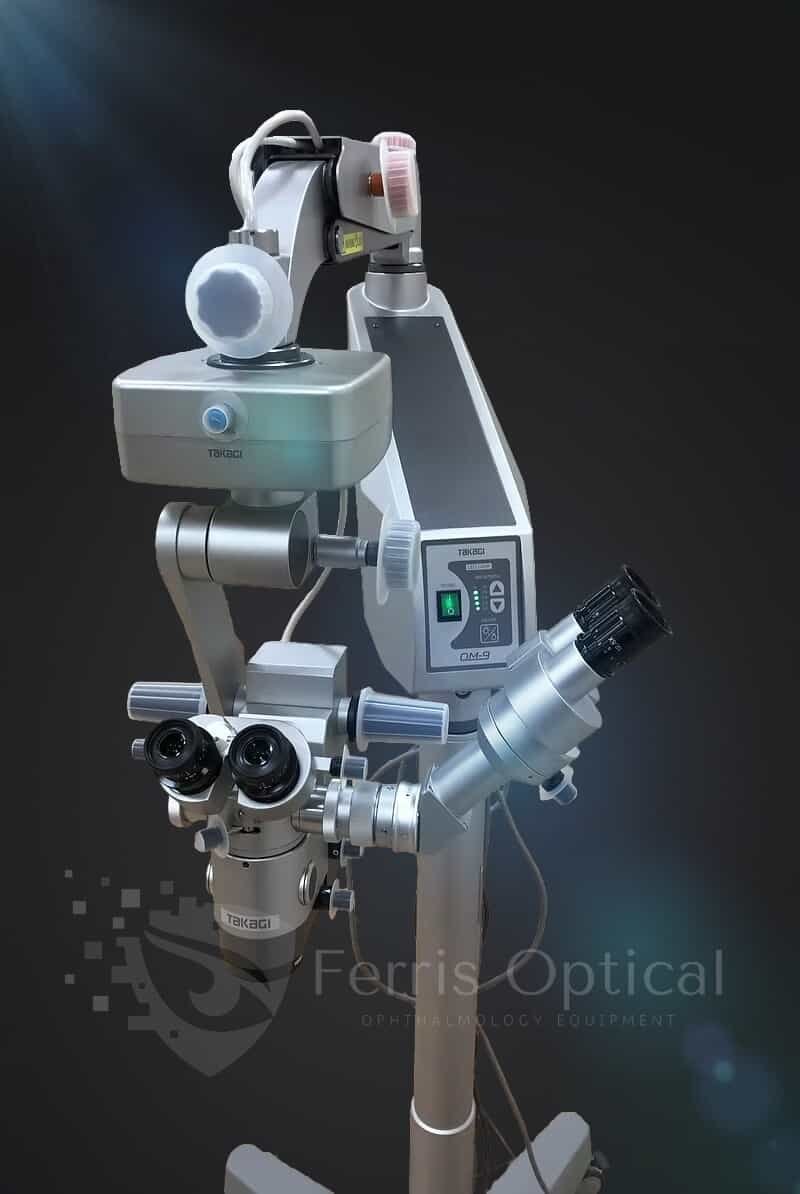

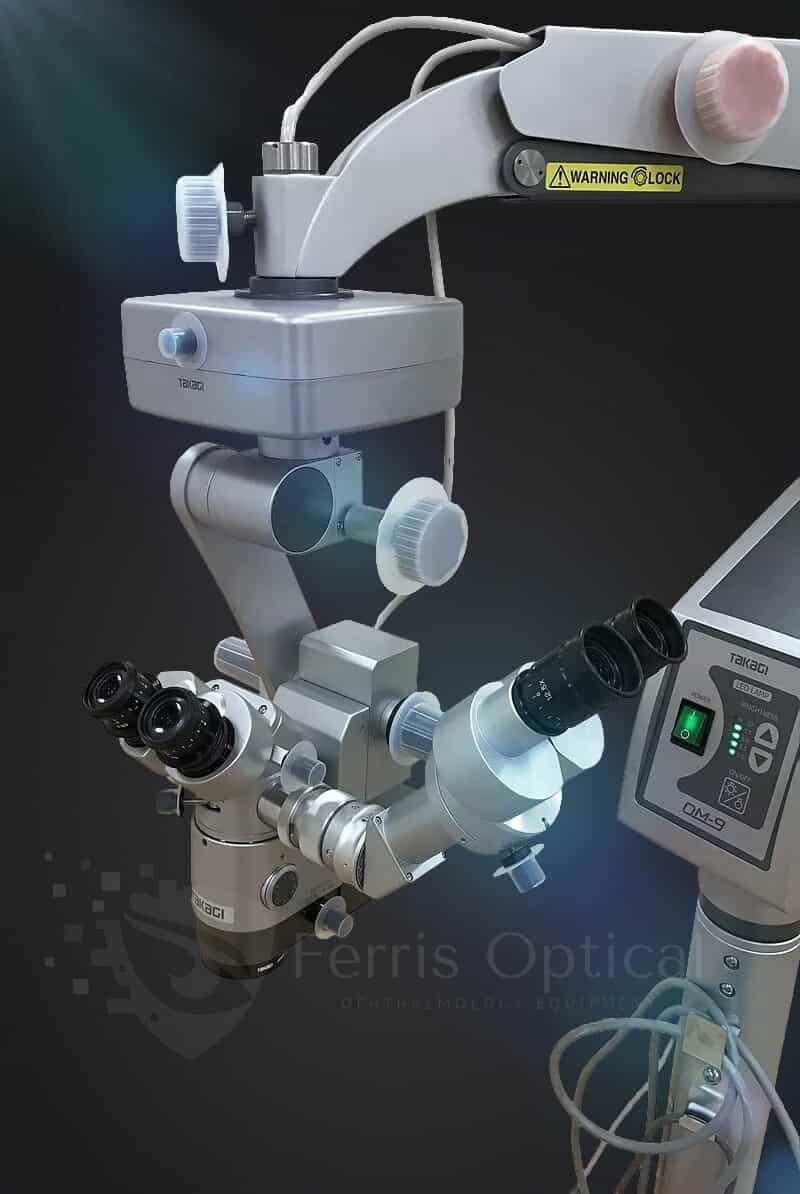

Takagi OM-9 is a high-performance operating microscope that offers a wide range of advanced functions all contained within a compact package. Equipped with an illumination system and an apochromatic lens that delivers the highest level of optical performance, this microscope provides users with a bright, contrast-rich view with a 3D appearance.
A new red reflex illumination mechanism, capable of capturing outstanding red reflex images, is combined with high-intensity LEDs to achieve a clear, wide field of view and excellent color reproduction.
Takagi OM-9 Características clave:
- Motorized zoom magnification with smooth control
- High-quality apochromatic optical system
- Bright LED illumination with adjustable intensity
- Wide field of view for better surgical visibility
- Stable floor stand with smooth movement
- Ergonomic binocular tube for comfortable viewing
- Integrated red reflex illumination
- Multiple accessory compatibility (camera, beam splitter, assistant scope)
- Precise XY movement for accurate positioning
Takagi OM-9 Benefits:
- Enhances surgical accuracy and patient outcomes
- Reduces surgeon fatigue with ergonomic design
- Improves visualization in delicate eye surgeries
- Supports teaching and documentation with camera integration
- Reliable and consistent illumination for better clarity
- Flexible configurations for different surgical needs

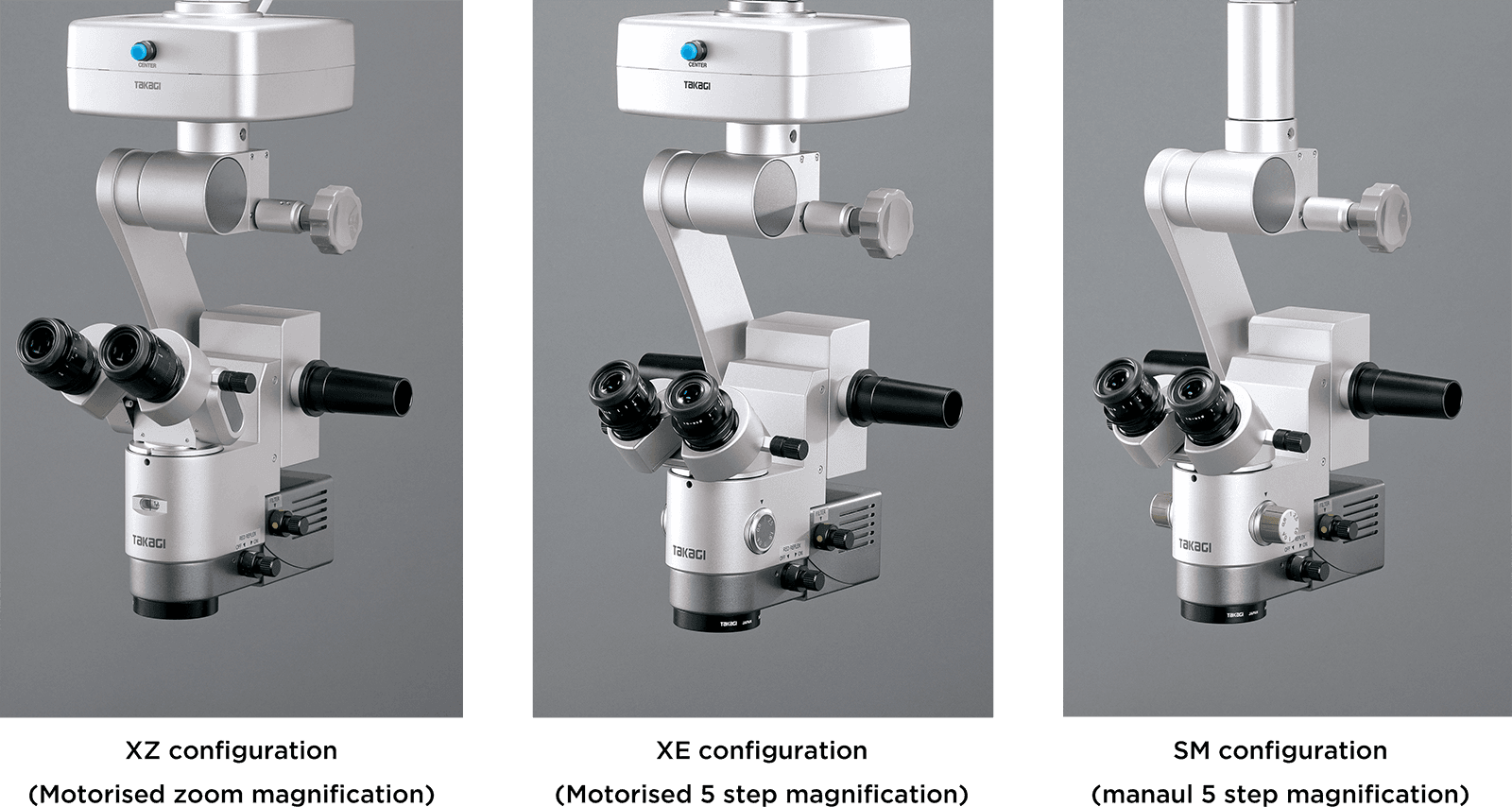

Three microscope specification configurations enable a flexible choice
All configurations are suitable for general ophthalmic surgery and ophthalmic procedures, including cataract surgery, and can also be used for retina and vitreous surgery. Across all configurations, there is no difference in the view’s clear, natural, and 3D appearance.
Differences in function relate to small adjustments to X-Y axis movements, the method of changing the microscope magnification,
and the binocular tubes (whether tiltable or fixed).
and the binocular tubes (whether tiltable or fixed).
New optics for retina and vitreous surgery

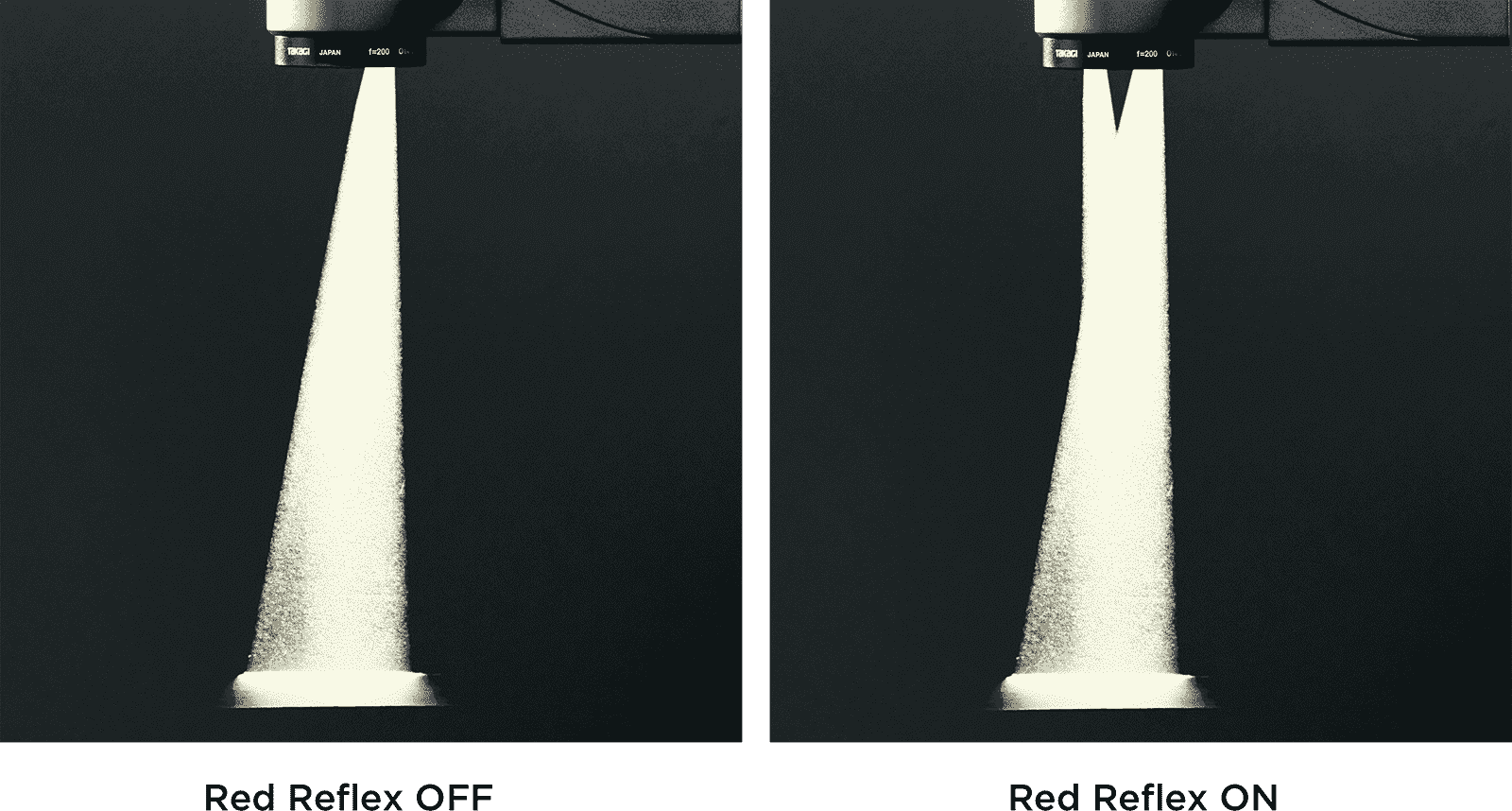

The new red reflex illumination mechanism that is incorporated into the main illumination means that there is good reflection from the fundus. providing a good red reflex image with a 3D appearance. Both of which are indispensable for cataract surgery.
When red reflex illumination is switched on, the light source switches to dual-source mode. making it easier to attain red reflex~ illumination.

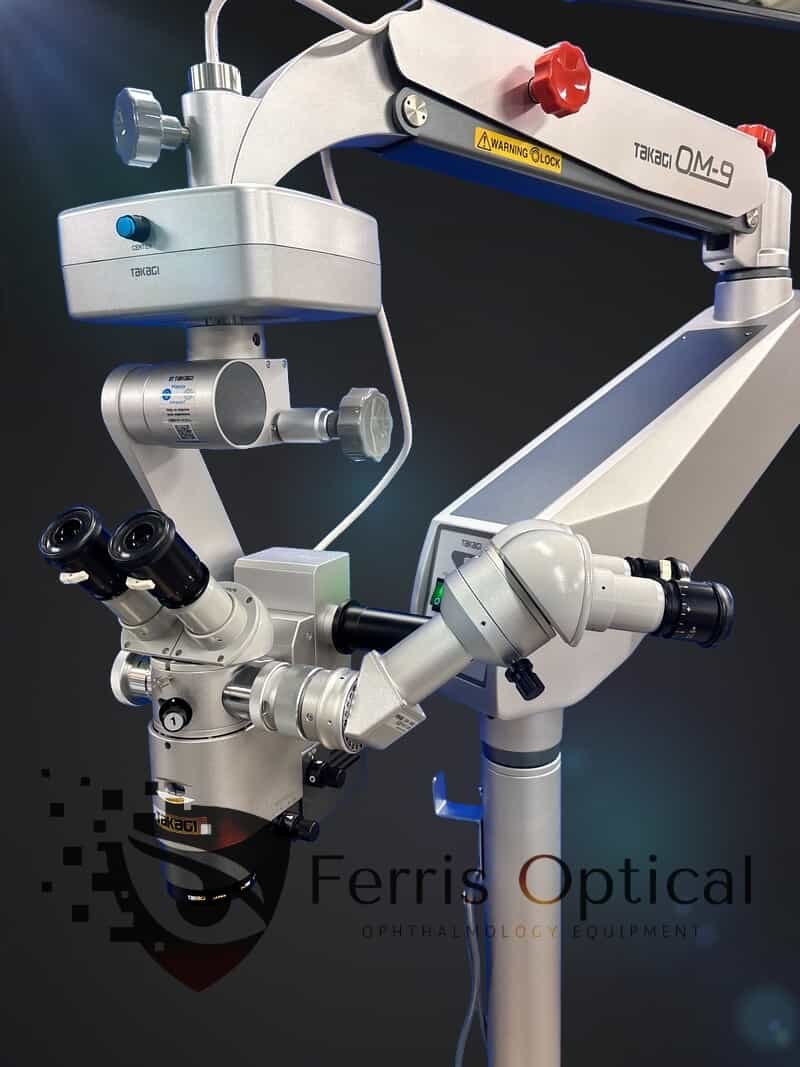

Takagi OM-9 Operating Microscope with LED Illumination
Design
- Most cables are concealed minimising dust attachments and reducing interference between operator and instrument.
- Cables for connecting an imaging system can also be concealed, achieving a sleek, hygienic design.
- New product colour scheme adds to the overall high quality.
LED
- New red reflex illumination, combined with a high-luminance LED, gives OM-9 brighter reflected light from the fundus.
- LED provides bright, sharp color reproduction.
Reduction of the Characteristic Blue Light of LED
- The projected light is soft and easy on patient’s eyes, acheived by reducing the peak of the characteristic blue wavelength of LED.
Optical Design
- New OM-9 optics are suitable for both cataract and vitreoretinal surgery.
- By adopting a standard objective lens F=200 mm, the OM-9 is fully suited for vitreoretinal surgery. (compatible with a BIOM viewing system)
- 10x eyepieces provide a wider, brighter & sharper view with greater depth of field.
Usability
- Tiltable binocular tubes available, which can incline more than 90° depending on the posture and physique of the operating surgeon.
- Movable range: 0° (straight) to 90° (inclined)
- By adopting the knob interlock system, the microscope tilts back and forth easily, which is necessary for glaucoma surgery.
Movable range: around ±30°
Fundus Observation Devices Adaptations
- Oculus BIOM and EIBOS 2 adaptations of Haag-Streit Surgical are available for OM-9.
Technical Specifications:
Optics & Magnification
- Magnification changer: Motorized zoom (5-step motorized / 5-step manual for SM)
- Objective lens: f = 200 mm (apochromatic correction optical system)
- Eyepieces: High eyepoint widefield 16x
- Field of view: 49.8 mm (wide), 56 mm, 37.3 mm, 22.4 mm, 14.9 mm
- Total magnification: 4.1x – 20.4x

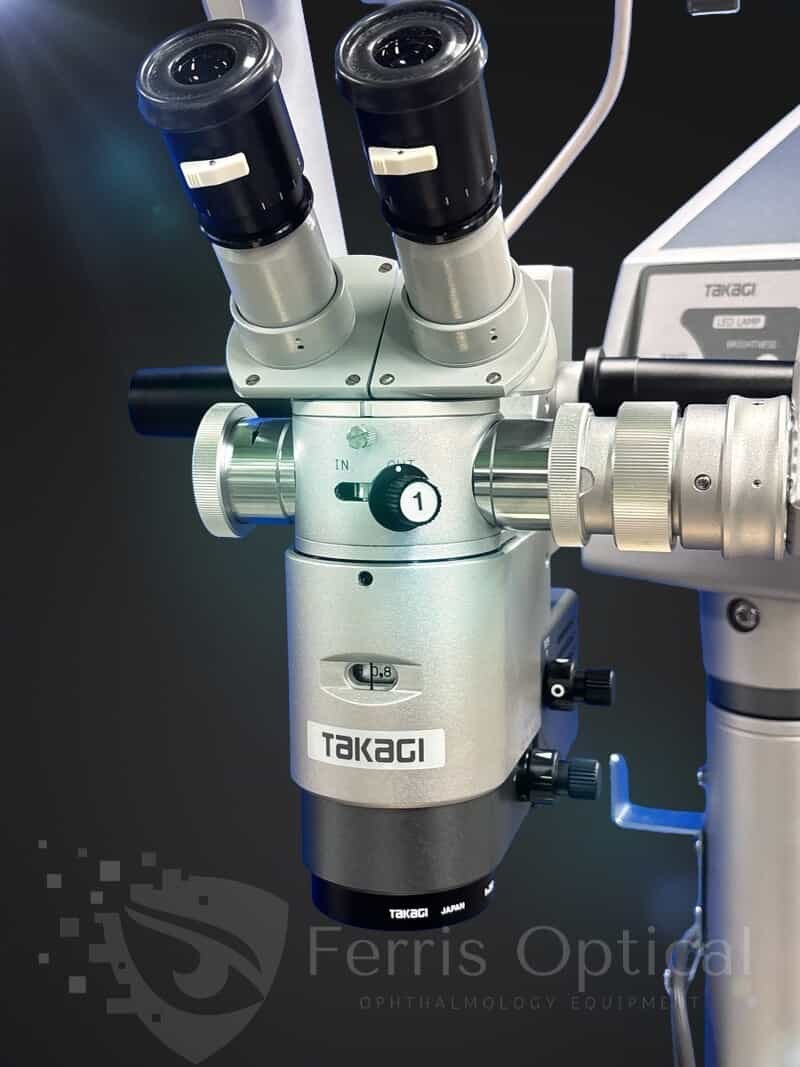

Viewing System
- Binocular tube: 45° inclined binocular tube (f = 125 mm)
- Tube length: 170 mm
Focus & Movement
- Focus (motorized): 30 mm
- XY movement: ±25 mm in each direction
- Movement speed: 3 mm/sec with centering control
Illumination
- Light source: LED
- Light intensity adjustment: 9 steps (display on gauge)
- Illumination field diameter: 60 mm
- Red reflex illumination: Available
Filters
- Heat-absorbing filter
- Blue filter
- Retina protection filter

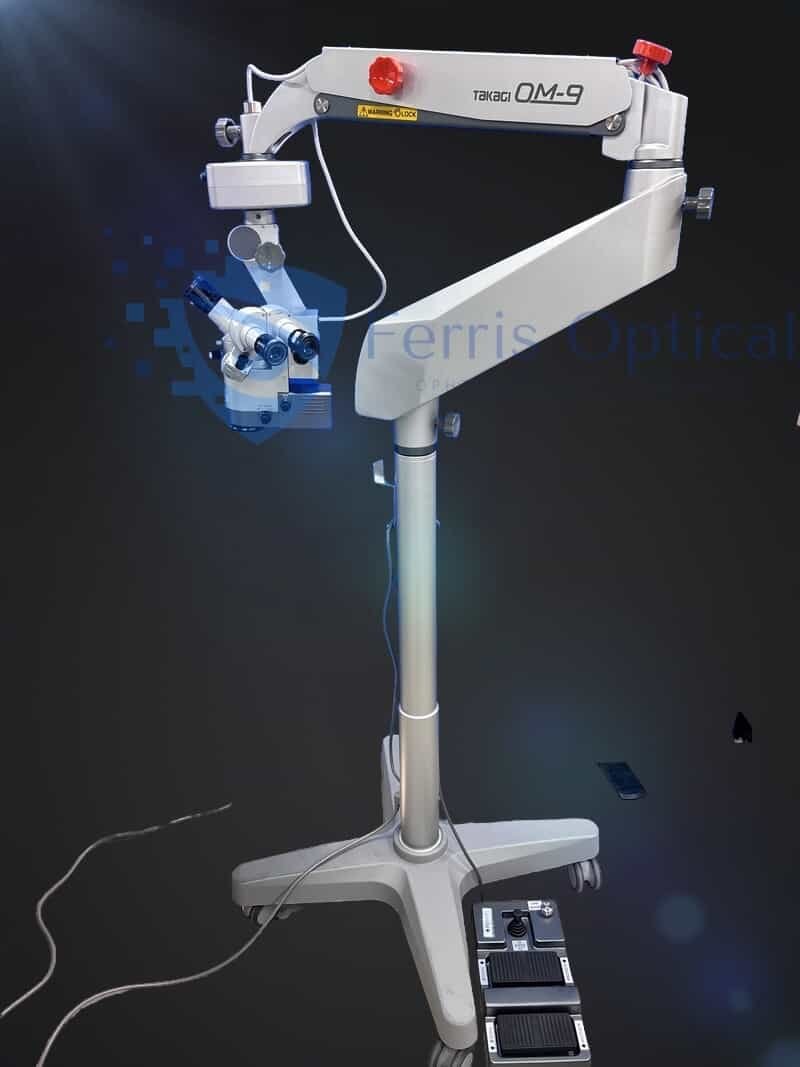

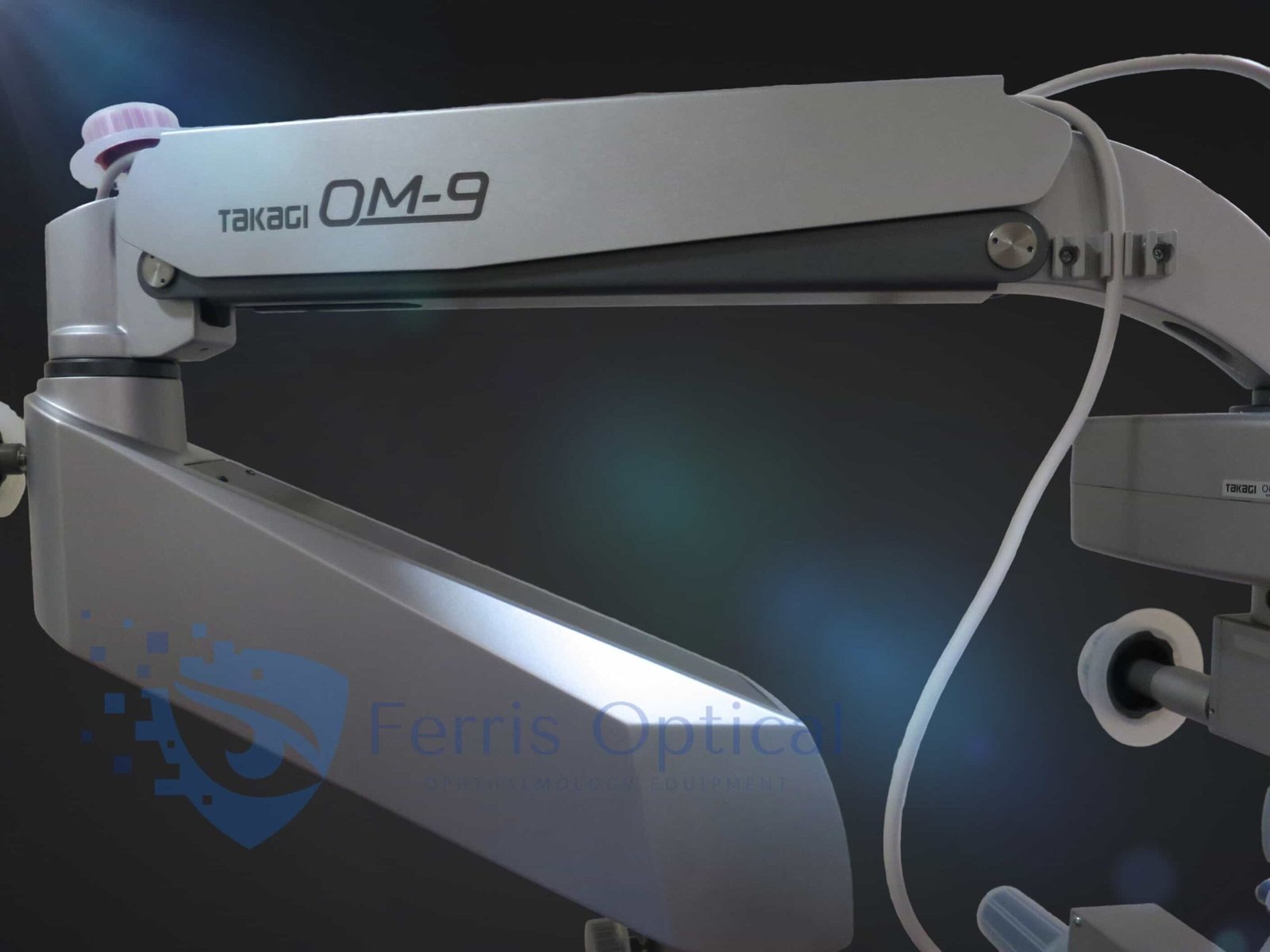

Arm & Stand
- Floor stand: With 4 casters and 2 stoppers
- Balance arm stroke (vertical): 400 mm
- Maximum arm reach: 1045 mm
- Maximum load: Up to 3.2 kg accessories
Control System

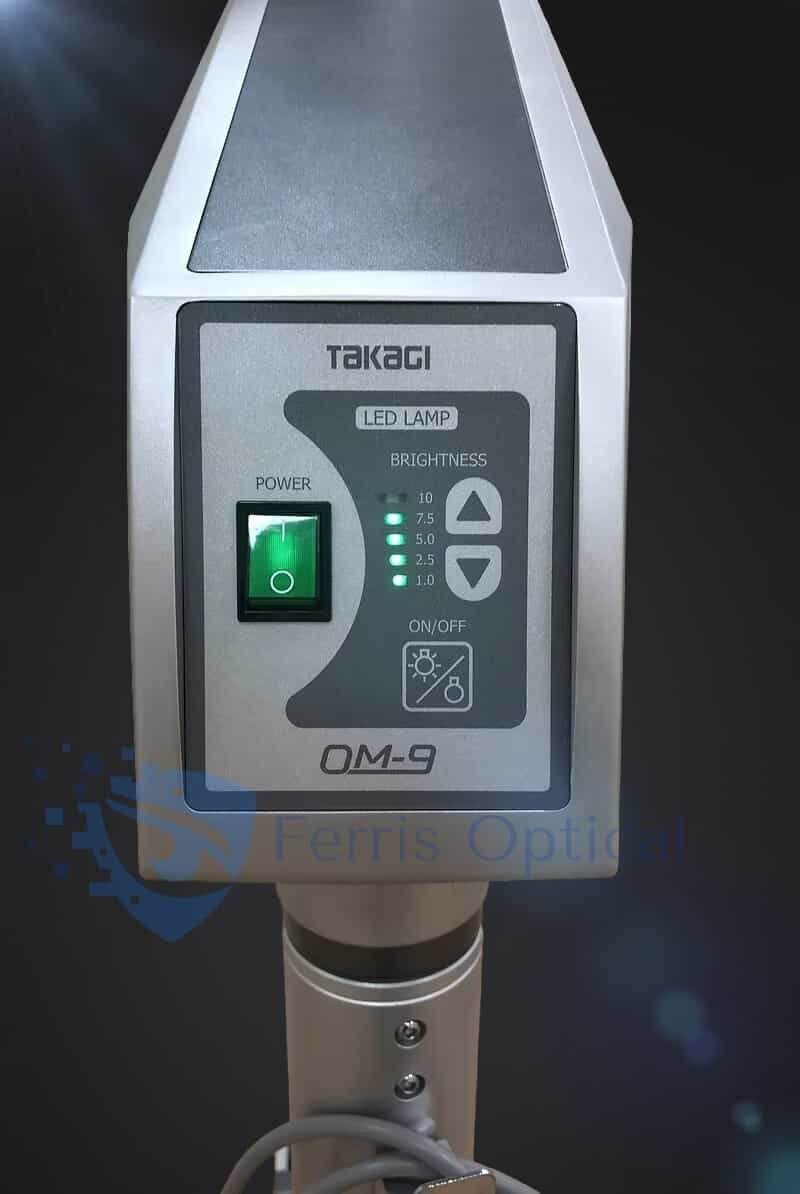

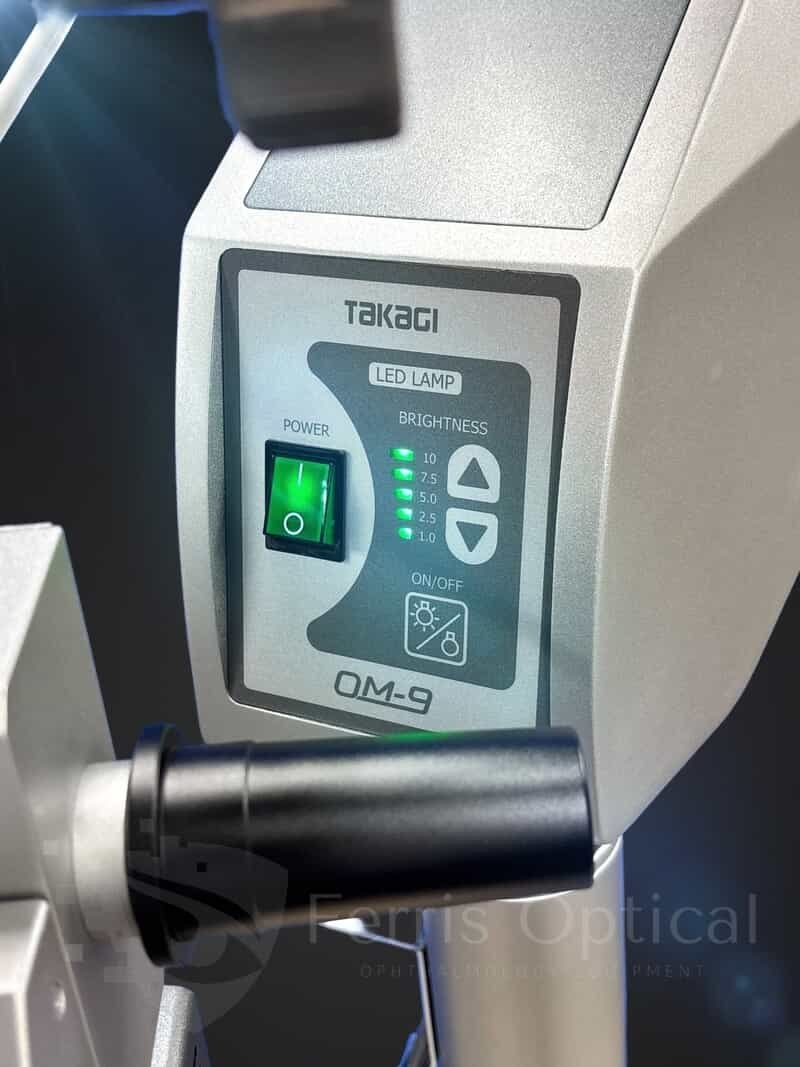

- Control panel: Brightness, light intensity, illumination ON/OFF switch, power switch

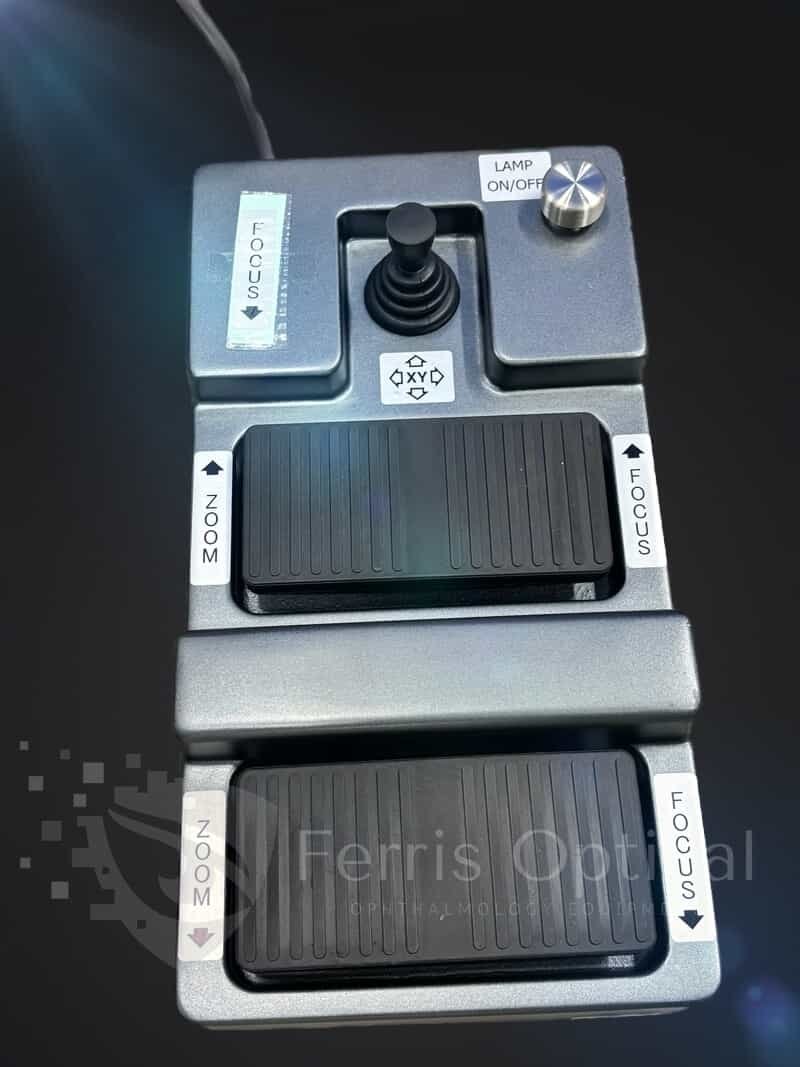

- Foot control: With PXS waterproof and dustproof performance
Electrical
- Power supply: AC 100–230 V, 50/60 Hz
- Power consumption: 70 VA
- Electrical protection class: Class I
Weight
- Weight (approx.): 90.1 kg
Content in the box
- Operating microscope unit
- Floor stand with arm
- Binocular tube
- Eyepieces
- Foot control unit
- Power cable
- User manual
Warranty
Takagi OM-9 Operating Microscope Comes With a 1 Year Manufacturer’s Warranty.
