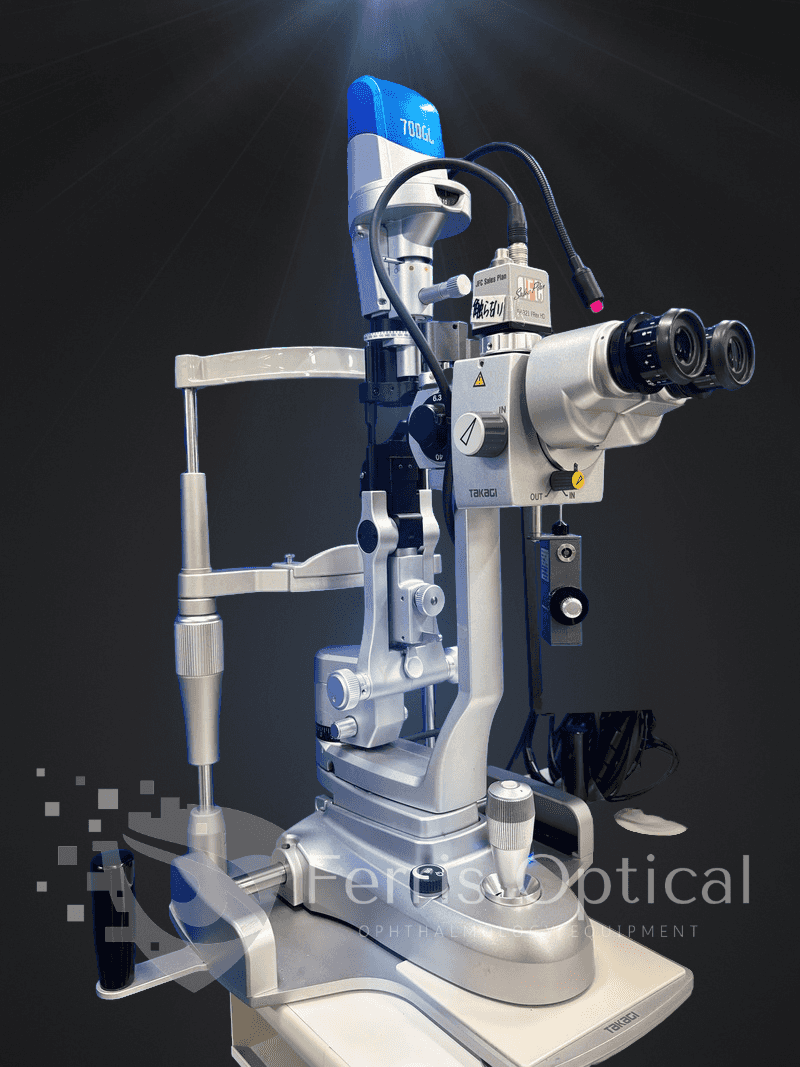

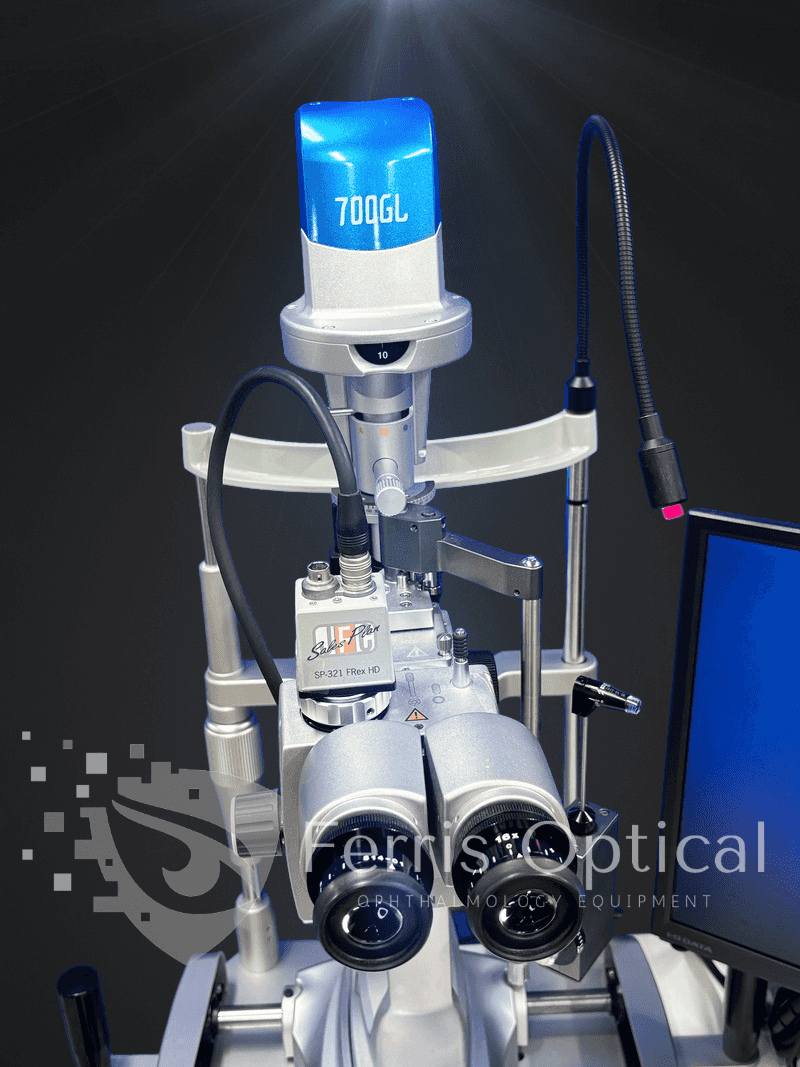

Takagi 700GL LED Spaltlampe is an advanced diagnostic tool designed for optometrists who demand precision and efficiency in their clinic. Its premium optical system and balanced LED light source provide crystal-clear views from the anterior segment to the fundus, ensuring accurate examinations for all patients.
Optometrists benefit from sharp, consistent slit illumination with minimal light and color irregularities, while the ergonomic design and patented built-in cable keep the workspace organized and professional. Customizable options, including the NSW (Narrow Angle Stereo Wide viewer) and LPH (Large Patient Headrest), make the 700GL adaptable for a wide range of optometric needs.
Its clinic-friendly design features hidden cable routing, intuitive illumination controls, and ergonomic handling, streamlining patient exams and enhancing your practice’s professional appearance. Upgrade your diagnostic capabilities and deliver superior patient care with the Takagi 700GL. Contact us for availability, condition details, included accessories, and shipping options.
Hauptmerkmale:
- High-luminance LED light source (3500K) providing bright and natural illumination
- 22 mm inter-optical path distance for enhanced stereoscopic observation
- Galilean converging binocular stereomicroscope for precise clinical viewing
- Five-position magnification drum for quick magnification switching
- Magnification levels: 6.3x, 10x, 16x, 25x, 40x
- Wide illumination field (up to 14 mm) covering the entire cornea even with slight eye movement

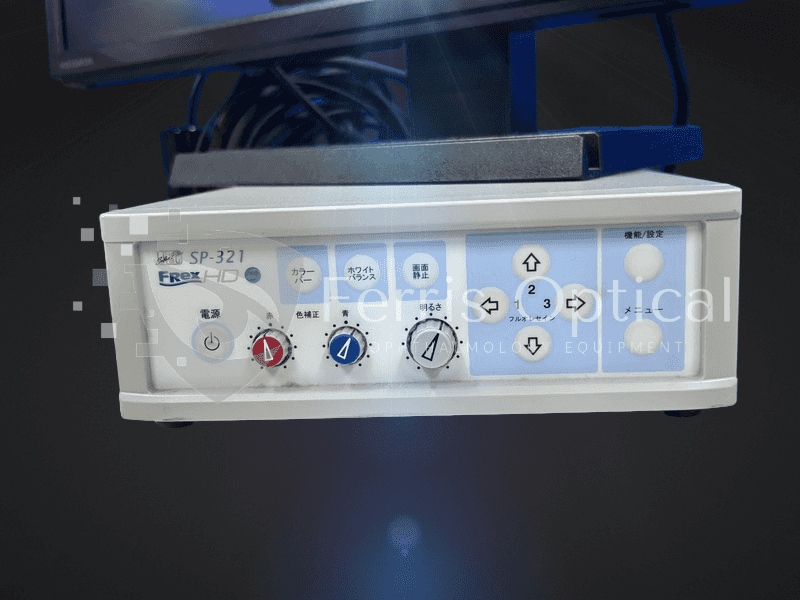

- Built-in background illumination for imaging systems
- Ergonomic design with large control knobs for easy one-hand operation
- Internal cable management for a cleaner examination environment
- Converging binocular tubes with 6° convergence angle for natural depth perception
- Multiple filters: Blue, red-free, blue correction, and yellow filters

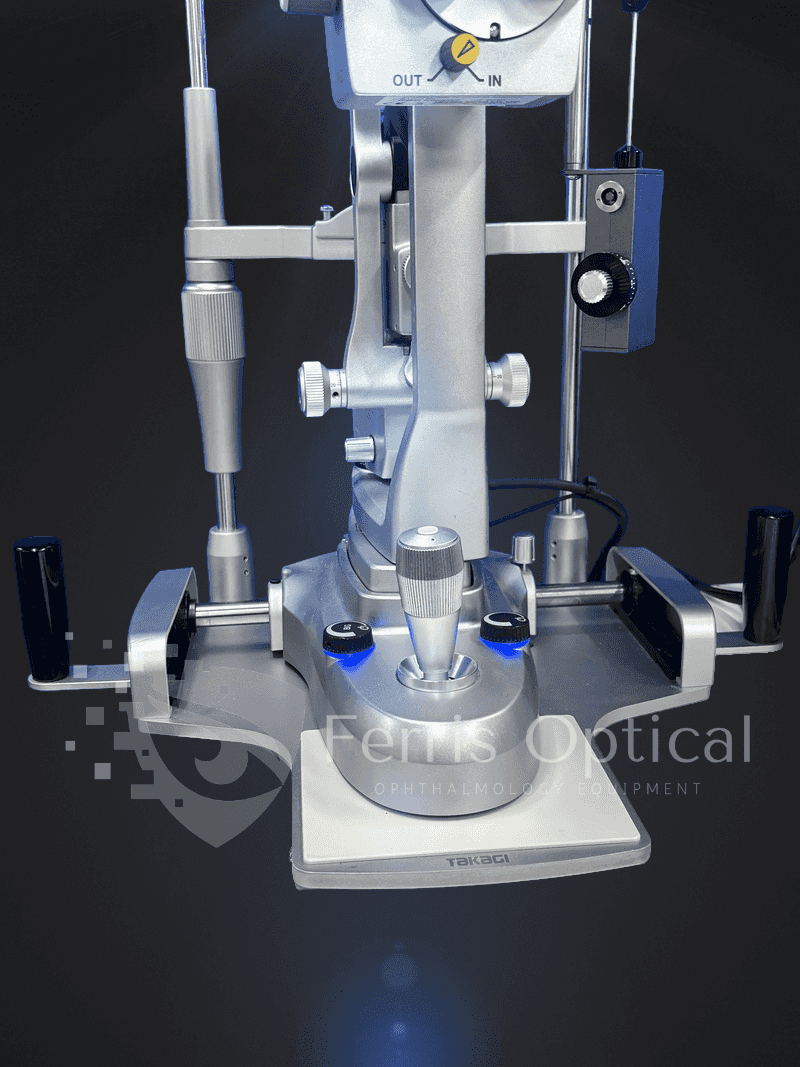

- Stable joystick control for smooth positioning
The 700GL’s modern, clinical design elevates the look and functionality of any optometry clinic. Its ultra-efficient LED illumination reduces energy costs while providing exceptional brightness for detailed imaging. Hidden cables, tiltable eyepieces, and a standard breath shield enhance both usability and infection control—delivering a safer, more streamlined experience for optometrists and patients alike.
The Takagi 700GL Slit Lamp Microscope directly addresses the daily challenges faced by optometrists—such as patient movement, unclear visualization, and practitioner fatigue during extended exams.
With its advanced Galilean optical system and high-luminance LED illumination, the 700GL delivers bright, sharp, stereoscopic images for precise diagnosis of the anterior segment and fundus. Ergonomic design and intuitive controls keep optometrists comfortable and focused, while the unique optical path and integrated illumination make it easier to spot subtle lesions, foreign bodies, and early-stage eye conditions. This results in more efficient exams, greater diagnostic confidence, and improved patient outcomes in the optometry clinic.
Hospital Benefits:
- Improves diagnostic accuracy by providing detailed stereoscopic images of eye structures
- Supports efficient ophthalmic examinations with intuitive one-hand control
- Reduces doctor fatigue during long examination sessions due to ergonomic design
- Enhances patient comfort with LED illumination that generates minimal heat
- Helps identify lesions, foreign bodies, and abnormalities with better clarity
- Maintains stable observation even when minor patient eye movement occurs
- Keeps clinical setups neat with concealed cable design

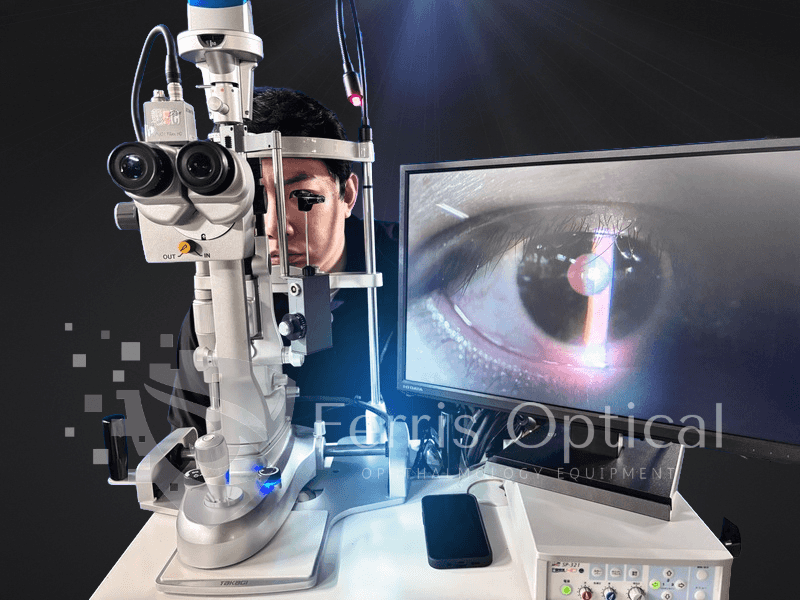

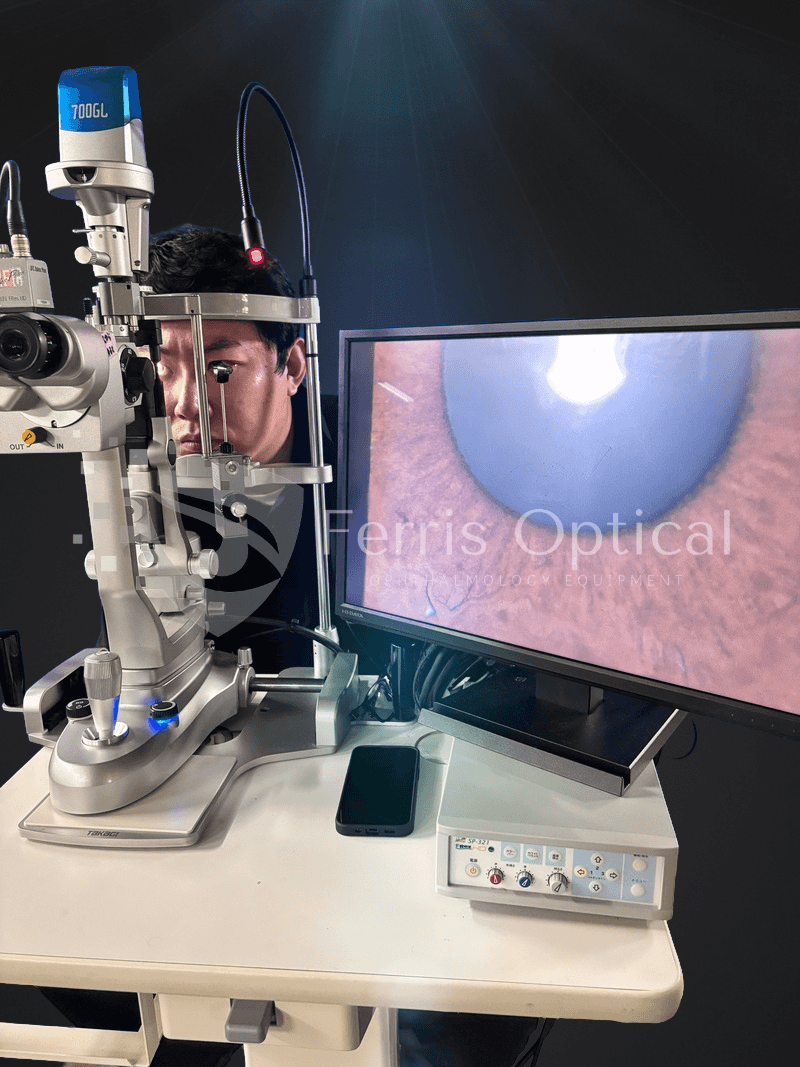

- Enables clinical documentation when used with compatible imaging systems
Technical Specifications:
- Microscope Type: Galilean converging binocular stereomicroscope
- Magnification System: Five-position rotating drum
- Total Magnification: 6.3x / 10x / 16x / 25x / 40x
- Eyepieces: 16x wide-field high-eyepoint
- Field of View: 35.9 / 23.3 / 14 / 8.8 / 5.5 mm
- Interpupillary Distance: 52 – 82 mm
- Diopter Adjustment: ±7 D
- Working Distance: approximately 119 mm
- Slit Width: 0 – 14 mm continuously adjustable
- Slit Length: 1 – 14 mm
- Slit Rotation: 0 – 180° with click stops
- Filters: Blue, red-free (green), blue correction, yellow
- Illumination Source: LED (3500K)
- Power Supply: AC 100 – 240 V
- Power Consumption: DC 5V 2A
- Base Movement Range:
- Vertical Movement: 30 mm
- Fine Movement: 15 mm
- Forward/Backward: 105 mm
- Fixation Light: Red LED
- Gewicht: Approximately 12.5 – 13.3 kg
Include:
- Takagi 700GL slit lamp microscope unit
- Chin rest and headrest assembly
- LED illumination system
- Standard eyepieces
- Power adapter and cable
- Staubschutzhülle
- User manual
Warranty
Takagi 700GL Standard Slit Lamp 1-year manufacturer’s warranty.
